3217-14WD

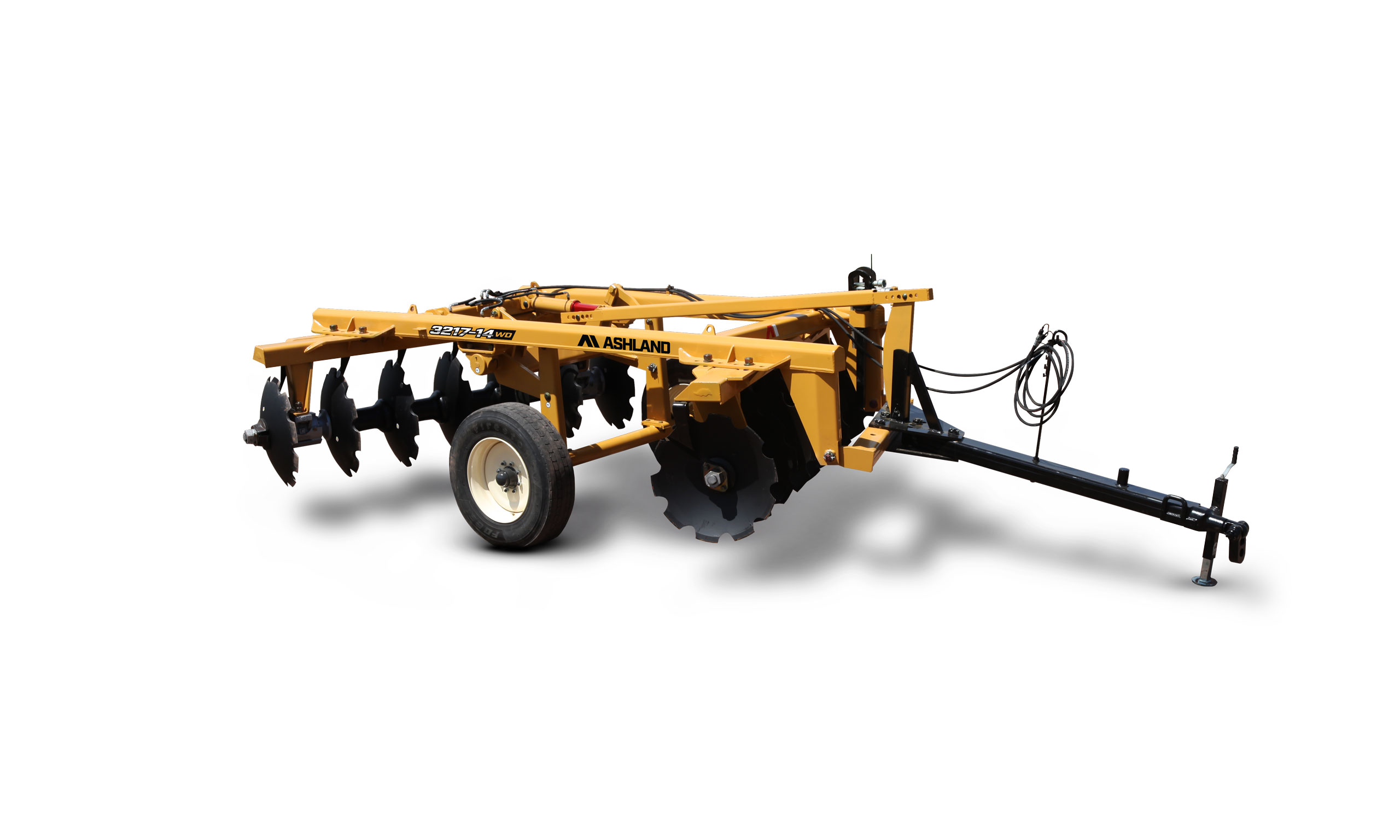

The 3217-14 WD is a Heavy Duty Wheeled offset disc harrow from Ashland Industries is ideal for contractors who primarily use MFWD tractors from 150 HP or larger. Whether the job is land clearing, road building, fire breaks, or soil blending, this disc harrow was  built to take on any condition. The heavy-duty welded steel mainframe provides maximum strength and superior visibility while operating the machine.

Find a Dealer

3217-14WD Overview


Oil Bath Bearings

Large gang beams feature welded gang standards specifically designed for the Oil Bath gang bearings for long service life and less downtime in extreme conditions. Competitive models with greaseable bearings are more susceptible to damage for either lack of greasing or seal damage from over greasing.

Large Gang Shaft

The massive 2-1/2″ diameter gang shaft has a double bolted nut lock system on both ends of the shaft to keep the gang tight. Convenient wrenches are provided to tighten the gangs when necessary.

Excellent Ground Engagement

To provide you the greatest amount of blade digging force Ashland uses heavy 20″ cast the spools place over the 2.5″ gang shaft to give you the highest weight per blade performance. The 36″ unit provide 1,060lbs/blade whereas the 42″ unit 1,123lbs/blade digging force. This type of weight / blade allows you to do more in a single pass.

Narrow Road Transport

The 9′-9″ overall transport width makes mobilization much easier in urban areas.   The tall ground clearance and large wheels allow you to easily back on the unit onto a RGN trailer. The front hitch can be folded inward to reduce the overall length once on your trailer.

3217-14WD Specs


/

Recommended HP

190 - 450 hp

Blade Dia, Notched

32"

Blade Thickness

0.472"

Blade Spacing

17"

Blade Qty.

7 Front, 7 Rear

Weight, Total

10,083 lb

Weight / Blade

720 lb

Width of Cut

104"

Bearing

Oil Bath

Gang Shaft Dia.

2.5"

Tire Size

(2) 295/75R22.5

Hub

10 Bolt Hub

Spindle Dia.

3.5"

Hyd. Cyl. Lift Qty.

2

Shipping Width

117"

Shipping Length

290"

Length (folded)

209"
