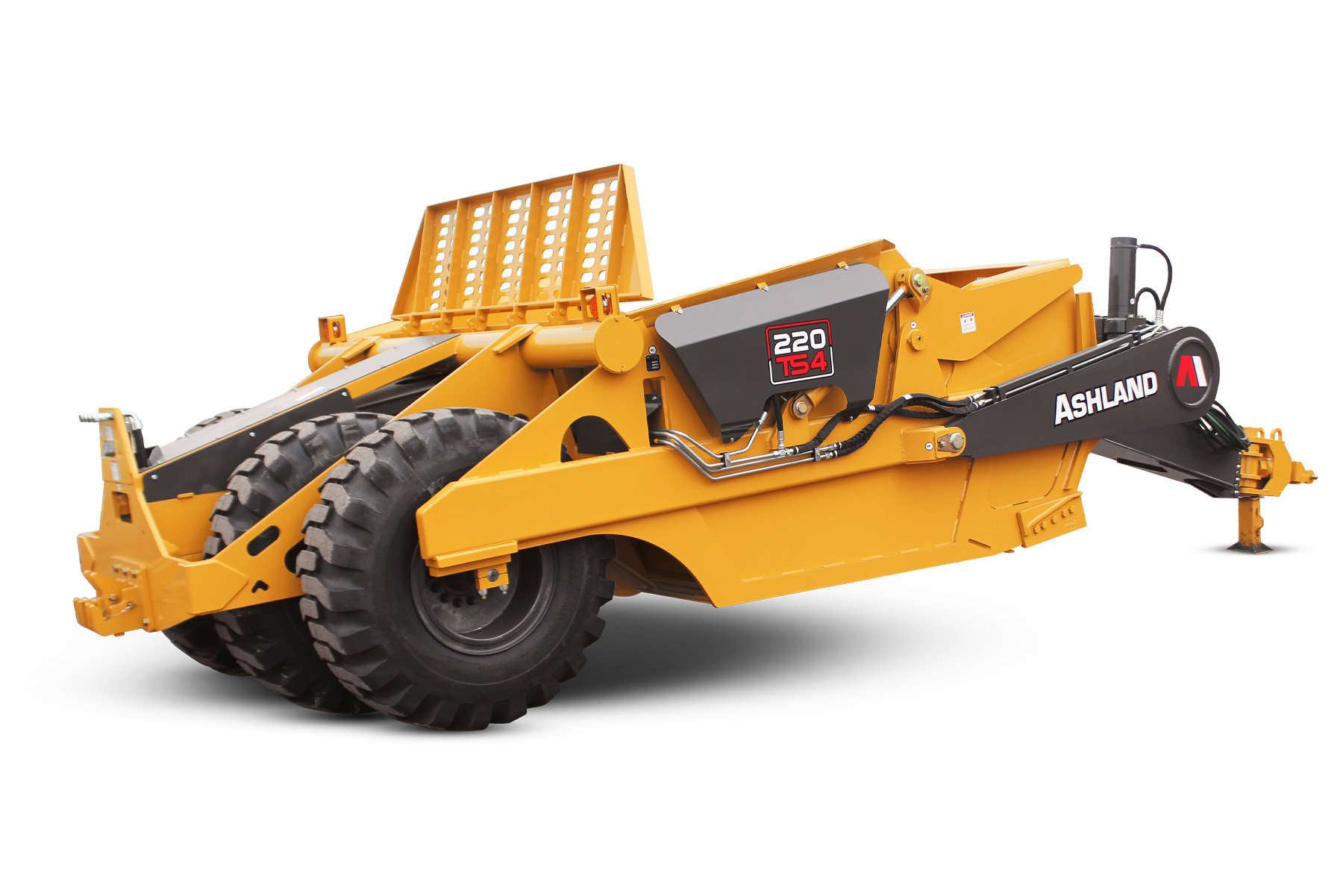

220TS4

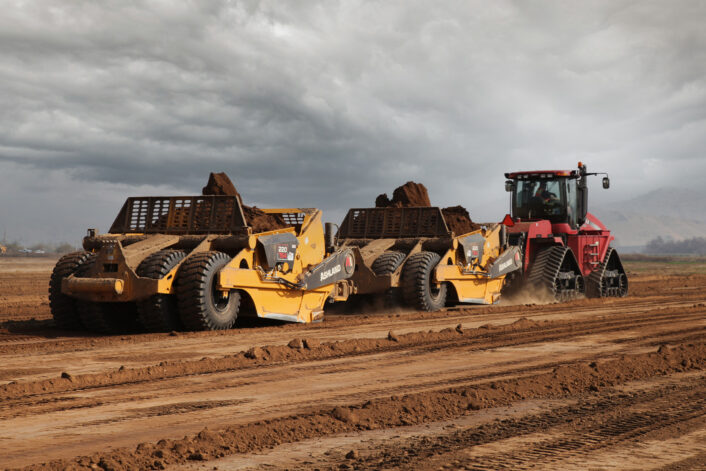

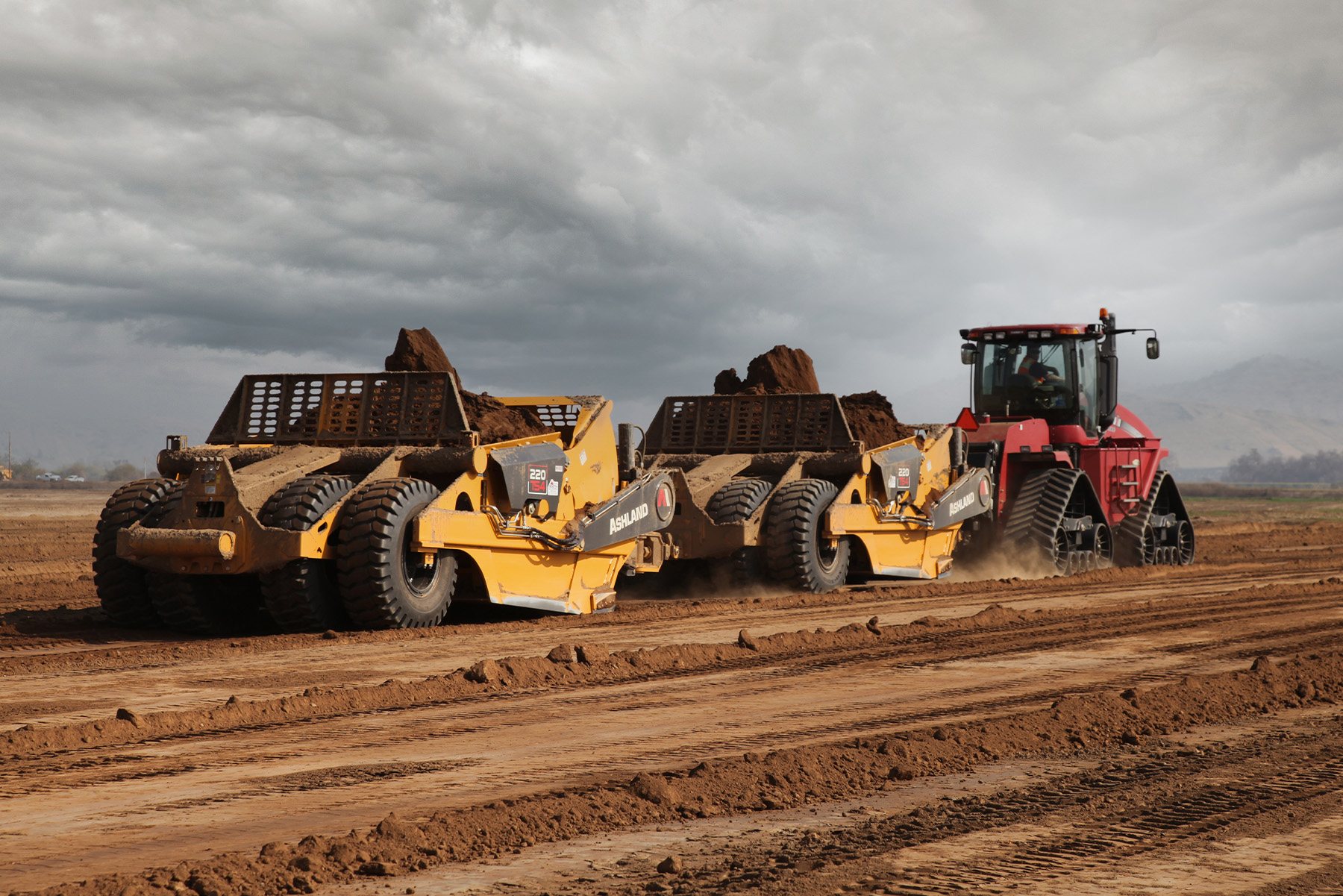

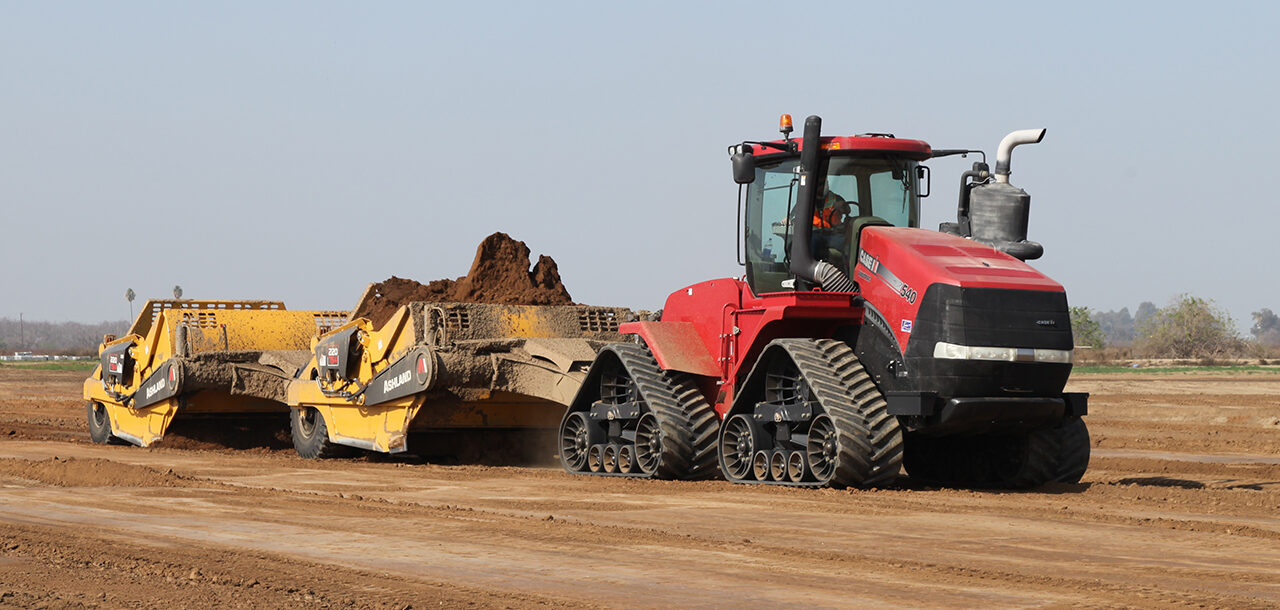

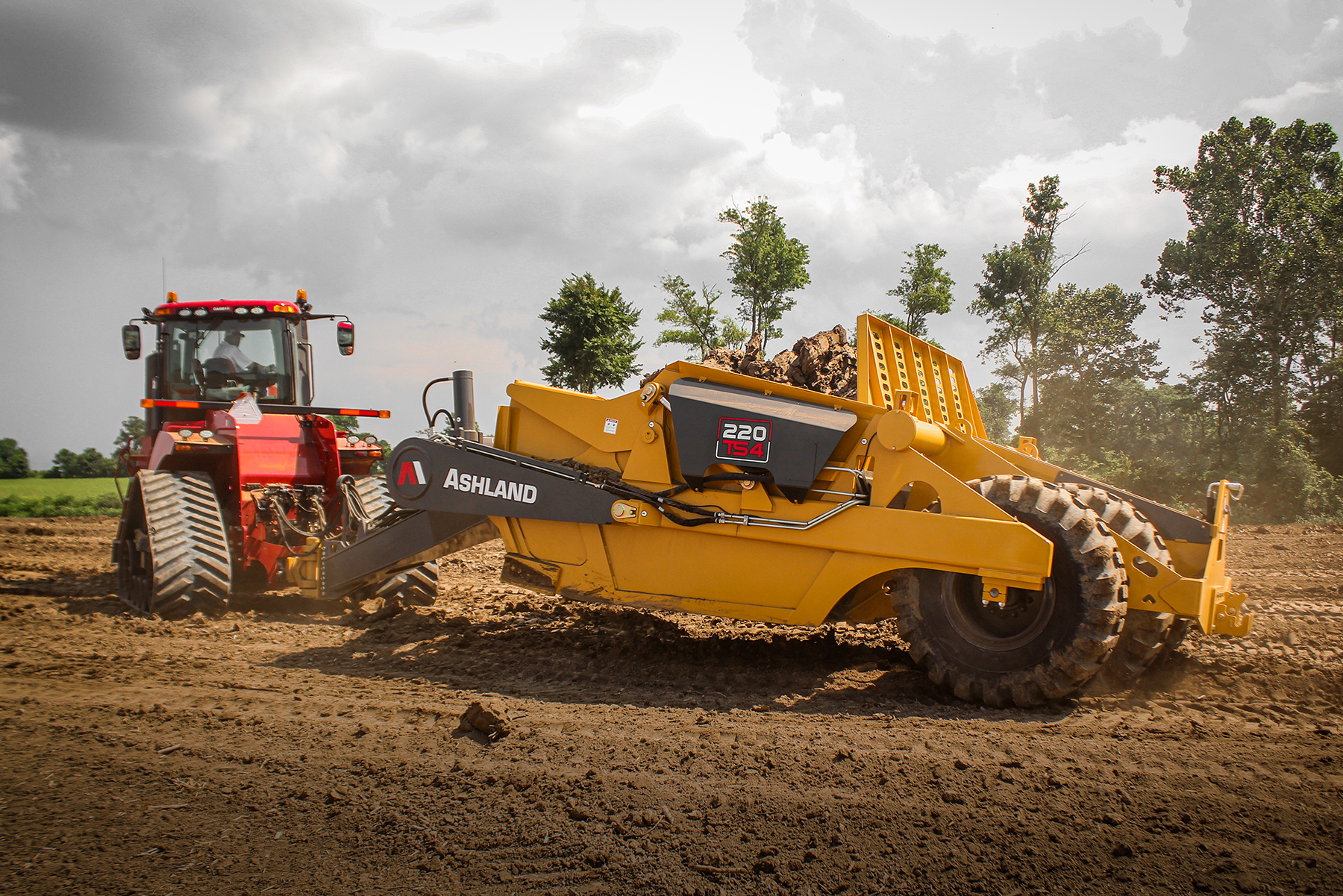

The Ashland 220TS4 scraper is a 22 cubic yard scraper built tough by engineers and skilled craftsmen who have spent their lives working in the dirt searching for solutions and innovations to allow you to do more. The 220TS4 has bulked up and been running with the best crews for years. These scrapers are truly versatile machines that can be pulled as singles or tandems to suit your jobsite demands. The 220TS4 comes standard as a lead unit with the necessary hydraulic plumbing and rear quick hitches to make tandem operation a breeze. Drop your cost-per-yard and increase efficiency by pulling these scrapers in tandem to get a doubled heaped capacity of 44 cubic yards.

Find a Dealer

220TS4 Overview

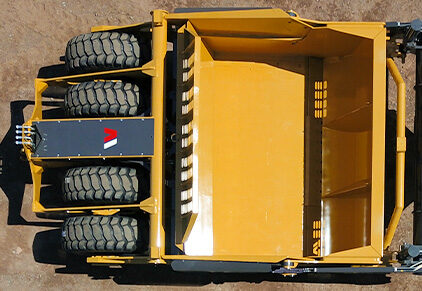

220ts4 Tire Position

Positionable Wheels

The four 20.5 x 25 OTR rear wheels are independent of each other. Giving you the flexibility of installing them in-line or offset from each other. With each wheel being separate, you will not see the mud buildup between wheels like competitive models that have two wheels on a standard hub.

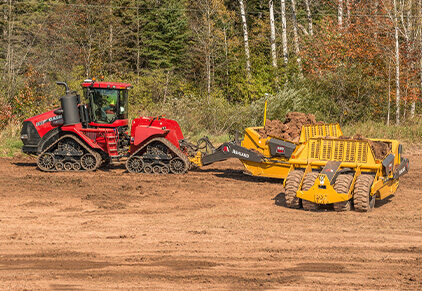

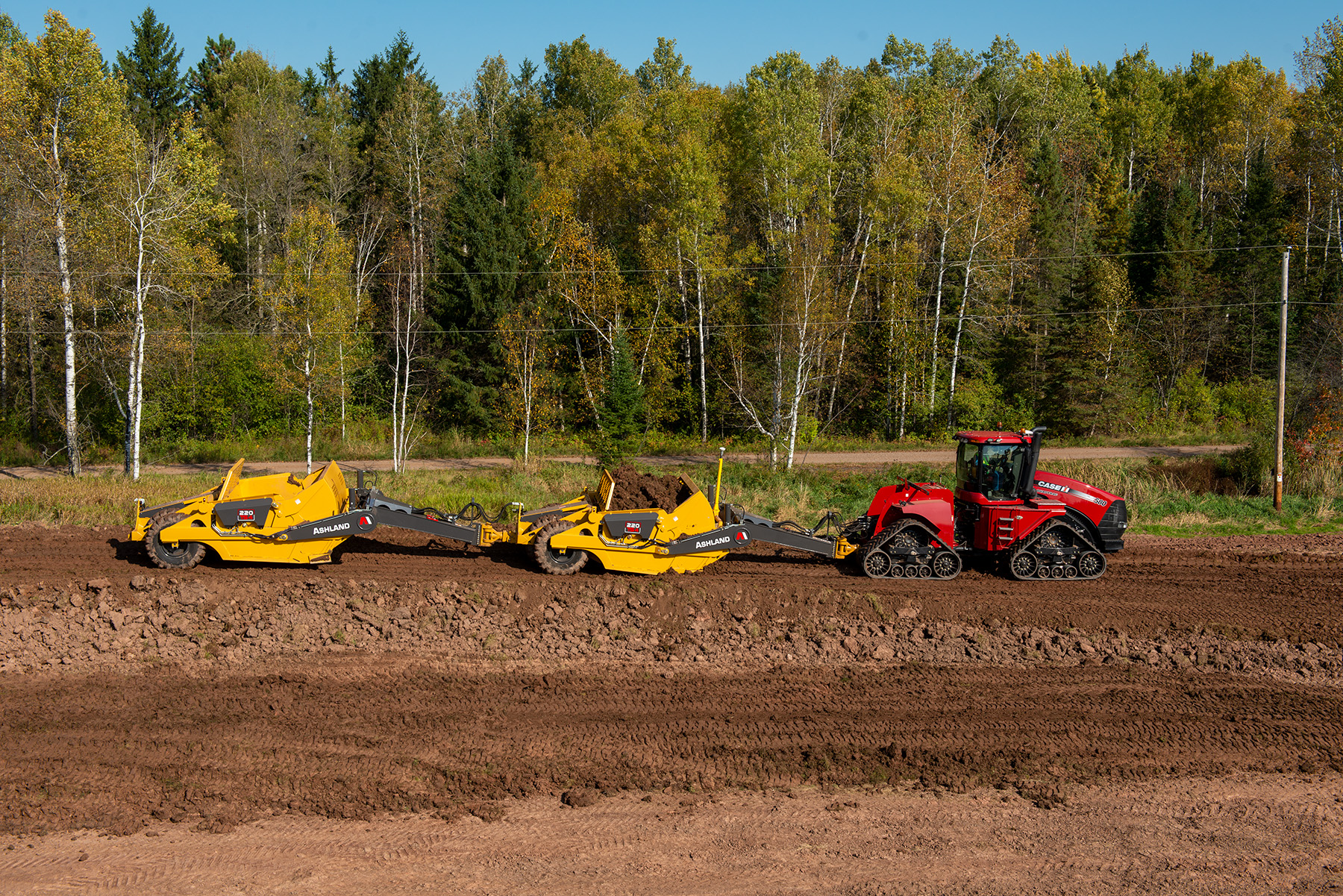

220ts4 Tandem Turn

Lead Units Standard

The 220TS4 has been the preferred scraper for customers who move large amounts of material. A large portion of will operate this scraper in tandem operation. That is why Ashland only offers these scrapers as lead units with pass-thru hydraulic to the rear. Each scraper requires 2-hydraulic remotes to operate the scraper.

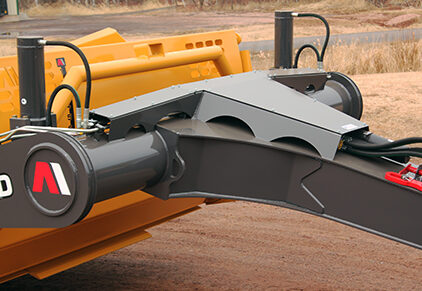

220ts4 Ride Control

Ride Control

The 220TS4 has a large 2.11 gal hydraulic accumulator plumbed within the lift cylinders that provides a simple cushion ride control when transporting fully loaded scrapers over rough conditions. This gives you a better ride while protecting your investment in your tractor and scraper.

220TS4 Video


Gps Laser Adaptable Icon

GPS Laser Adaptable

Ashland Scrapers are GPS ready for the efficient excavation and placement of bulk material.

One Year Warranty Icon

One Year Warranty

Trusted to do more. Our rich history provides us the upmost confidence in protecting your earthmoving investment.

Direct Mount

Direct Mount

A 25% / 75% weight transfer ratio increases traction and makes for easy loading.

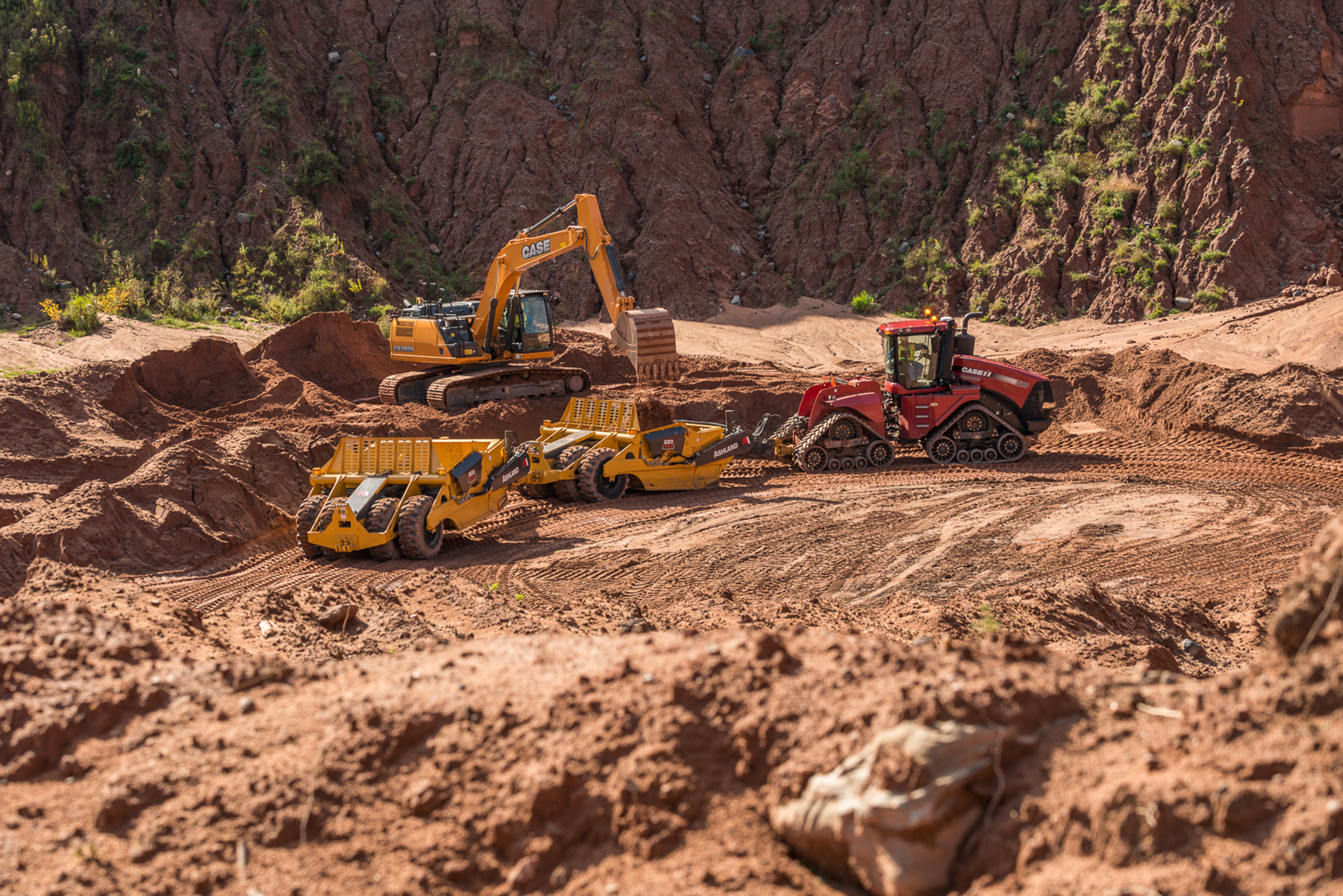

Top Load

Top Load

Tilt the back rack to create a larger target for easy top loading when the job requires.

Ce Certified

CE Certified

Built to the highest standard of quality and sustainability with CE Certification

220TS4 Specs


/

Heaped Capacity

22 yd3

Struck Capacity

16"

Recommended HP

400 - 620 hp

Width of Cut

126"

Apron Clearance

56"

Depth of Cut

8"

Clearance at Blade

18"

Ejector Cylinders (2)

5" x 60"

Apron Cylinders (2)

5" x 13"

Lift Cylinders (2)

5.5" x 20"

Laser/GPS Bracket

Standard

Push Bar Extension

Optional

Tires Std. Rear (2)

20.5" x 25"

Tires Opt. Rear (2)

20.5 x 25 yd3

Overall Width

143"

Overall Length

339"

Overall Height

97.5"

Weight (Std. Tire)

26,558 lb

Weight (Radial Tire)

27,278 lb
