2114E
The Ashland 2114E has a wide 14ft (4.26m) cutting width to enhance productivity when leveling fields and finish grading. It features optional advanced slope control and walking tandem axles, ensuring maneuverability and stability for a smooth operation, making this specialized machine a perfect multifunction solution to complete your earthmoving projects.
Find a Dealer
2114E Overview
Positional Wheels
The rear frame allows the four independent wheel assemblies to be installed in various positions. The most common is offset, which reduces mud build-up and prevents material from pushing ahead of the tire in soft conditions.
Optional Tandem Setup
The 2114E can also be ordered as a lead unit which allows you to pull two pans in tandem and increase your combined heaped capacity to 42 cubic yards.
Automatic Cushion Ride
An accumulator is installed in the hydraulic system in order to turn the vertical lift cylinders into shock absorbers. This proven design is used to reduce wear and protect both your scraper and tractor investment.

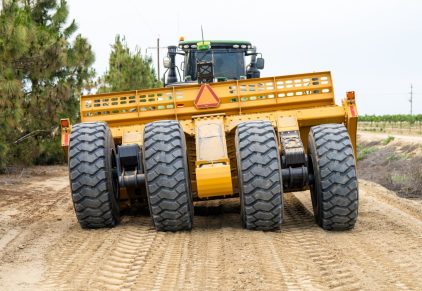

Optional Tilt & Walking Tandem
The 2114E can also be ordered with optional advanced slope control and walking tandem axles, ensuring maneuverability and stability for a smooth operation.
Minimal Maintenance
The front hitch is the only daily maintenance point on the 2114E. This scraper uses high-quality greaseless fiber bushings on pivot pins, hydraulic cylinders, and ejector wall rollers. The rear ejector frame uses high-density plastic slide blocks to guide the ejector wall forward smoothly.
Containerized Shipping
The bolt together design of the 2114E easily allows the entire machine to be dissembled and loaded into a 40ft shipping container for cost effective international shipping.
2114E Video
GPS Laser Adaptable
Ashland Scrapers are GPS ready for the efficient excavation and placement of bulk material to meet job site specifications.
Superior Cylinder
Unrivaled hydraulic cylinder design ensures maximum uptime and provides a 2-year hydraulic cylinder warranty.
High Tensile Steel
Using high strength abrasion-resistant steel allows Ashland to build stronger and lighter scrapers than competitors.
One Year Warranty
Trusted to do more. Our confidence in high tensile steel provides security for your earthmoving investment.
Minimal Maintenance
Oversized pins and greaseless bushings are used throughout the machine to reduce the time spent lubricating hard to reach grease zerks.
2114E Specs
Heaped Capacity |
21.2 yd3 |
|
Struck Capacity |
12.6 yd3 |
|
Recommended Power Unit |
300 - 650 hp |
|
Width of Cut |
167.5" |
|
Gate Opening |
57.75" |
|
Depth of Spread |
23.70" |
|
Ground Clearance at Blade |
23.70" |
|
Ejector Cylinder (1) |
5" x 67" |
|
Gate Cylinder (2) |
4.5" x 29.3" |
|
Lift Cylinder (2) |
5.5" x 34.4" |
|
Tires Standard Rear (4) |
20.5 R25 Bias |
|
Weight Transfer |
25.2% Tractor - 74.8% Scraper |
|
Lighting System |
Standard |
|
Laser/GPS Mount |
Standard |
|
Push Bumper |
Standard |
|
% Wt. on Hitch |
25.2% |
|
Loaded Weight |
73,380 lb |
|
Max Load Rating |
50,880 lb |
Overall Width |
184.4" |
|
Overall Length |
379.4" |
|
Overall Height |
92.42" |
|
Weight |
22,500 lb |
