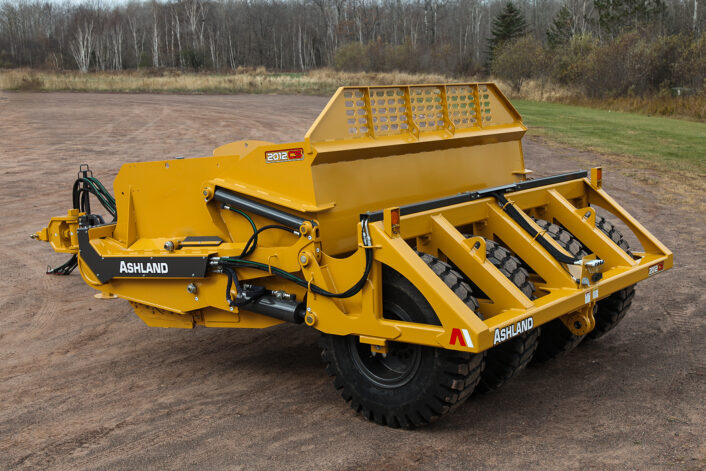

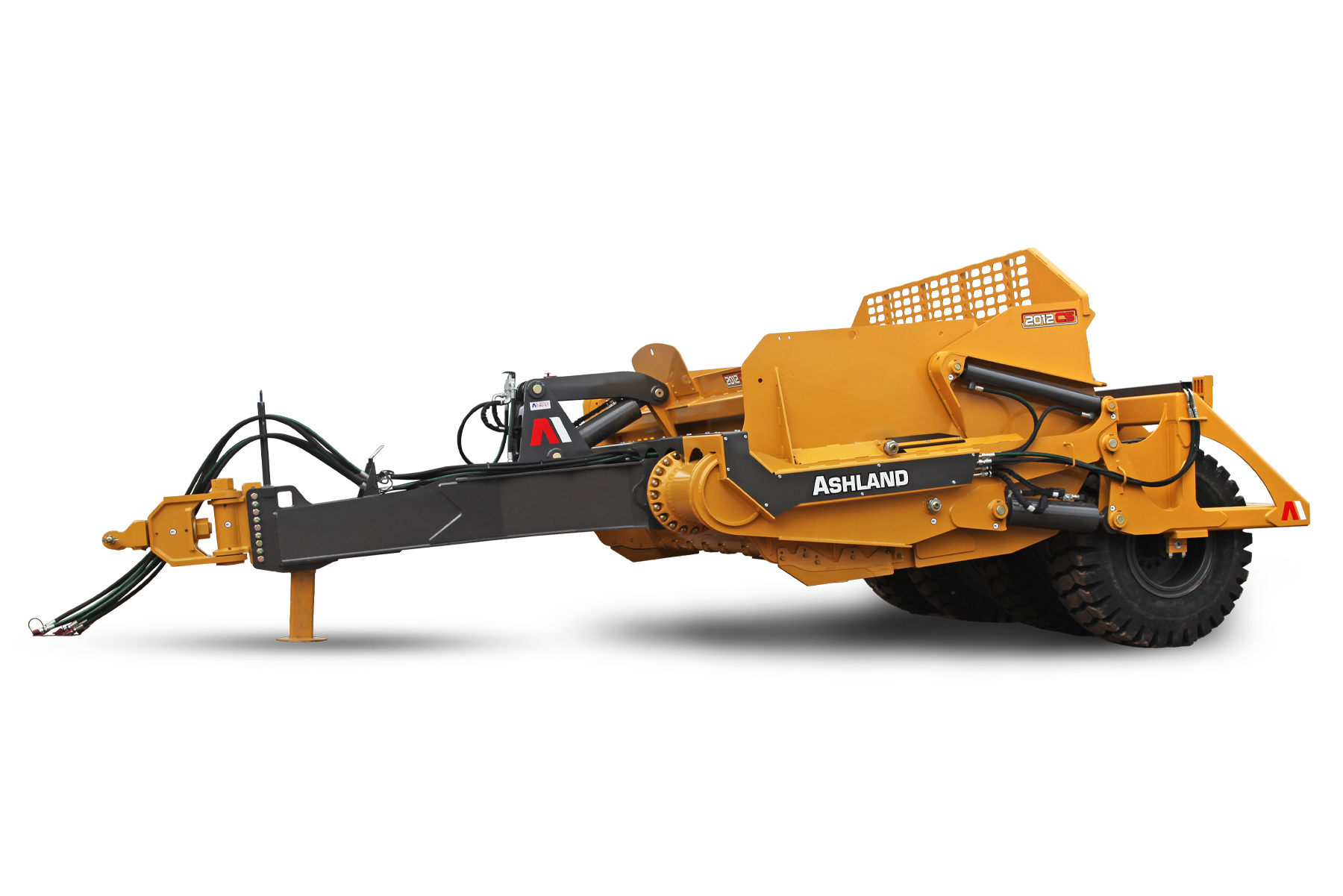

2012CS

The Ashland 2012CS delivers maximum performance and value for your construction and agricultural jobs. The 2012CS is a dump-style, direct mount scraper that is engineered from the ground up. Featuring a 12’ wide cut and hauling 20 cubic yards of material, this scraper is built using superior steel and manufacturing quality. The dump-style 2012CS scraper excels when your jobsite requires moving loose sandy soil as a preferred advantage over an ejector scraper.

Find a Dealer

2012CS Overview

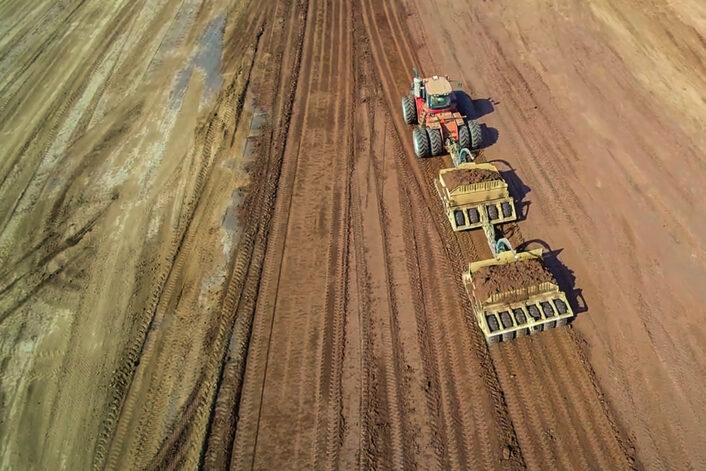

2012cs 2014cs Tandem Feature

Lead Units Standard

Most of the customers who own the 2012CS, 2014CS are running these scrapers in tandem operation. That is why Ashland only offers these scrapers as lead units with pass-thru hydraulic to the rear. Each scraper requires 2-hydraulic remotes to operate the scraper.

2012cs Wiper

Wiper Wall

A common problem with most pivot dump scrapers is material buildup between the bowl side wall and the wiper wall will bend the wiper wall inward. The bowl and wiper walls on the Ashland scrapers are made from SSAB high tensile strength steel providing the structural integrity to prevent the wiper wall from bending. Ashland uses the same thickness as our leading competitor, but we have twice the yield strength of the material.

2012cs Front Section

Front Section

The 16″ front section pipe is raised for better visibility for the operator while allowing more room for debris to pass under and be loaded into the bowl. Robust cast steel flanges enable these scrapers be disassembled and shipped into shipping containers for our international customers.

2012cs Tires

Rear Wheel System

The 2012CS has (4) 20.5 x 25 OTR rear tires. Maintaining a level cut starts at the rear wheels. On an Ashland every support is identical to the next which translates into tighter weld joints to the rear frame tubes. Ashland has stacked two double lip grease seals on both sides of the hub for added protection.

Gps Laser Adaptable Icon

GPS Laser Adaptable

Ashland Scrapers are GPS ready for the efficient excavation and placement of bulk material.

One Year Warranty Icon

One Year Warranty

Trusted to do more. Our rich history provides us the upmost confidence in protecting your earthmoving investment.

Direct Mount

Direct Mount

A 25% / 75% weight transfer ratio increases traction and makes for easy loading with less required horsepower

Top Load

Top Load

Tilt the back rack to create a larger target for easy top loading when the job requires.

Ce Certified

CE Certified

Built to the highest standard of quality and sustainability with CE Certification

2012CS Specs


/

Heaped Capacity

20 yd3

Struck Capacity

14 yd3

Required HP

400 - 620 hp

Width Of Cut

144"

Apron Clearance

49"

Dump Cylinders (2)

3.5" x 32"

Apron Cylinder (1)

6" x 16"

Lift Cylinders (2)

6.5" x 16"

Laser/GPS Bracket

Optional

Mud Scraper

Optional

Tires Std.

(4) 20.5 x 25

Opt. Tires

(4) 23.5 x 25

Overall Width

166"

Overall Length

309"

Overall Height

96"

Weight Transfer

25% Tractor 75% Scraper

Weight (Std. Tire)

22,380 lb

Weight (Opt. Tire)

23,252 lb
