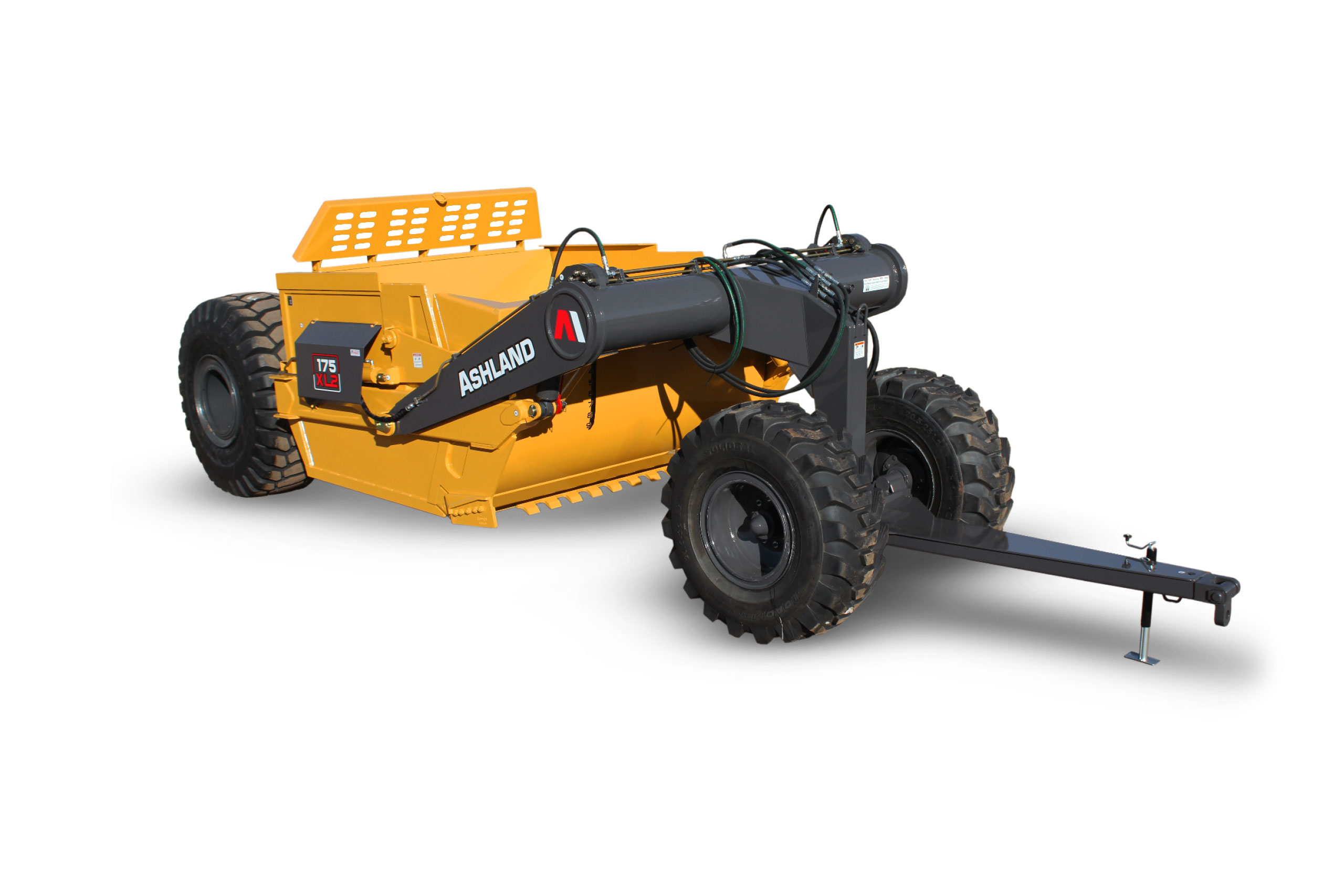

175XL2

Your land is your life blood – the more you can get from it the better. The 175XL2 was built to make the most of your valuable time, prepping your land for maximum production. You can reshape waterways, repair washouts, expand holding ponds, and create a new building pad on your property. The 175XL2 is the largest front dolly wheeled scraper within the Ashland lineup. The machine is built for maintaining and improving the most valuable asset you own, your land.

Find a Dealer

175XL2 Overview


Ashland 175xl2 Large Tires

Floatation

This scraper transfers very little weight to the tractor which allows you to use a standard tractor drawbar. The 29.5 x 25 OTR rear tire keeps the rear of the scraper climbing up onto soft conditions. For the front dolly wheels, you can select the standard 20.5 x 25 OTR wheels or upgrade to the 23.5 x 25 OTR for more floatation in softer conditions.

Ashland 175xl2 Eject

Large Gate Opening

The extra wide 62″ front gate opening allows for bulky material to easily be ejected so you don’t have to deal with unloading frustrations. It enables you to unload material exactly where needed easier than competitive models with poor gate openings.

Ashland 175xl2 Socket

Improved Socket System

The 175XL2 is equipped with a precision ball and socket design that is adjustable for wear with a great range of motion. As with all Ashland Dolly Wheel Scrapers, the socket assembly is machined to provide better lubrication to the top of the ball for extended longevity.

Ashland 175xl2 Visibility

Visibility

When scraping, the left-side front gate viewing window enables you to observe the loaded material inside the scraper bowl. The large 16″ front section pipe placement is raised to provide the operator with excellent blade visibility from the tractor cab. Large cut-outs have been placed on the ejector rack allowing you to see behind the scraper for increased safety while operating.

Ashland 175xl2 Floor

Strong Floor

The five-piece blade system, oversized plow bolts, and dual plated floor design, stumps, tree roots and large rocks are no match for this scraper. This is especially beneficial when doing land clearing on new land.

175XL2 Video


Gps Laser Adaptable Icon

GPS Laser Adaptable

Ashland Scrapers are GPS ready for the efficient excavation and placement of bulk material to meet your farm water management needs.

One Year Warranty Icon

One Year Warranty

Trusted to do more. Our rich history provides us the upmost confidence in protecting your earthmoving investment.

Dolly Wheel Icon

Dolly Wheel

Easily connect to any tractor with a standard Ag Hitch. No special drawbar required.

Top Load

Top Load

Tilt the back rack to create a larger target for easy top loading when the job requires.

Ce Certified

CE Certified

Built to the highest standard of quality and sustainability with CE Certification

175XL2 Specs


/

Heaped Capacity (ISO)

17.5 yd3

Recommended HP

300 - 620 hp

Width of Cut

108.5"

Apron Clearance

62"

Ejector Cylinder (1)

5" x 60"

Apron Cylinder (2)

4" x 16"

Lift Cylinder (2)

5" x 20"

Laser/GPS Bracket

Standard

Tires Std. Front

(2) 20.5 x 25

Tire Opt. Front

(2) 23.5 x 25

Tires Std. Rear

(2) 29.5 x 25

Overall Width

120"

Overall Length

360"

Overall Height

102"

Weight (w/ Std. Tires)

22,000 lb

Weight (w/ Opt. Front Tires)

22,436 lb
