215TS2

The Ashland 215TS2 scraper is a 21.5 cubic yard direct mount, ejector scraper that can run day and night to maximize your return on investment. The 215TS2 has a bulletproof design with a skeletal-built hitch pole frame, heavy wall front section pipe, high-grade steel, upgraded cylinders, and massive tires, striving to make you money. The 215TS2 comes standard as lead units, providing versatility for you to double your efficiency and heaped capacity to 43 cubic yards when you pull a pair of these scrapers in tandem.

Find a Dealer

215TS2 Overview


215ts2 Big Tires

Big Tires

The 215TS2 unrivaled floatation of the scraper is possible because of oversized 29.5 x 25 OTR rear wheels, the lower weight of the machine at its 21.5 cu.yd. payload.    The long rolling radius of these tires keep this scraper from climbing up in soft conditions or climbing up slopes.

215ts2 Rear Hitch

Lead Units Standard

The 215TS2 is designed to be a lead unit for tandem operations. This is why Ashland only offers these scrapers as lead units with pass-thru hydraulic to the rear. Each scraper requires 2-hydraulic remotes to operate all functions.

215ts2 Gps Mount

GPS & Laser Integration

The scraper has a cross member with a mounting plate for a GPS / Laser mast for automatic machine control. Optional wider corner blades are available to provide a flat finish across the entire width of the cut for your land leveling needs.

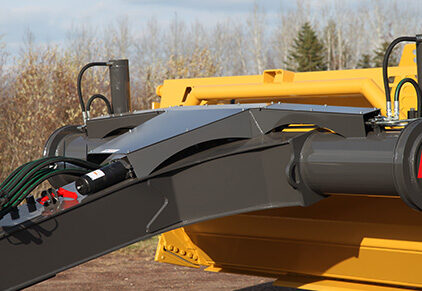

215ts2 Ride Control

Ride Control

The 215TS2 has a large 2.11 gal hydraulic accumulator plumbed within the lift cylinders that provides a simple cushion ride control when transporting fully loaded scrapers over rough conditions. This gives you a better ride while protecting your investment in your tractor and scraper.

Gps Laser Adaptable Icon

GPS Laser Adaptable

Ashland Scrapers are GPS ready for the efficient excavation and placement of bulk material.

One Year Warranty Icon

One Year Warranty

Trusted to do more. Our rich history provides us the upmost confidence in protecting your earthmoving investment.

Direct Mount

Direct Mount

A 25% / 75% weight transfer ratio increases traction and makes for easy loading.

Top Load

Top Load

Tilt the back rack to create a larger target for easy top loading when the job requires.

Ce Certified

CE Certified

Built to the highest standard of quality and sustainability with CE Certification

215TS2 Specs


/

Heaped Capacity

21.5 yd3

Struck Capacity

15.5 yd3

Recommended HP

400 - 620 hp

Width of Cut

126"

Apron Clearance

62"

Depth of Cut

8"

Clearance at Blade

18"

Ejector Cylinders (2)

4" x 60"

Apron Cylinders (2)

5" x 13"

Lift Cylinders (2)

5.5" x 20"

Laser/GPS Bracket

Standard

Push Bar Extension

Standard

Tires Std. Rear (2)

29.5 x 25

Tires Opt. Rear (2)

29.5 x 25

Overall Width

143"

Overall Length

339"

Overall Height

101"

Weight (Std. Tire)

26,408 lb

Weight (Radial Tire)

26,668 lb
